GQ Wirerope-luffing Fixed Slewing crane

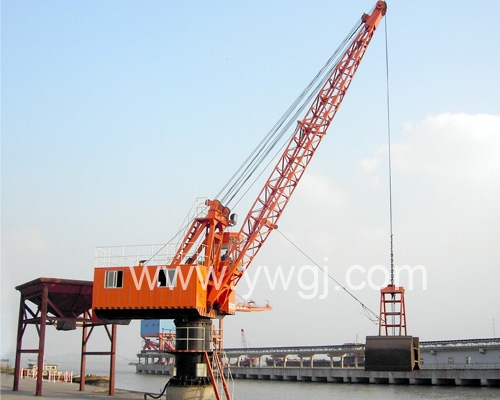

Grab type Fixed Slewing Crane

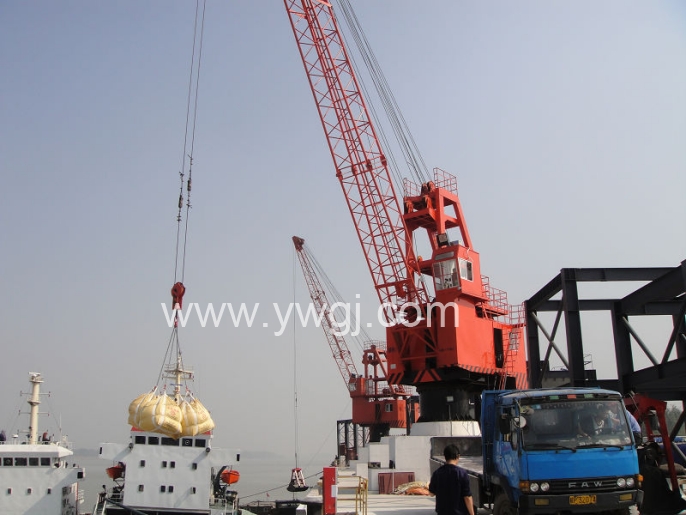

Hook type Fixed Slewing Crane
Specification:
  • The crane is installed on the bank. It is applied to the port of loading and unloading cargo between the bank and the ship. The customer can choose from the two: with hook \ with hook and grab.
  • Single boom is used in the crane. Horizontal displacement compensator with wirerope and pulley block, applied in the luffing with payload.
  • Adopted the slewing bearing structure, the crane can rotate 360 degrees, and run smoothly.
  • According to requirement of user, we design properly the working radius and the lifting height, in order to meet practical requirement.
  • According to requirement of user, the crane can be adopt frequency conversion control, then every mechanism of the crane can be stable and reliable.
  • The crane has the advantages of compact structure, high efficiency, convenient operation, low fault rate and easy maintenance.
  • 3t~50t   Lifting capacity
  • Installation location: Bank
  • Rate of discharging: General 100～500t/h
  • Common bulk: coal, coke, gravel, sand, ore, cement clinker, steel slag, sulfur, grain, etc.
    Common cargo: steel, wood, packed cargo, big stone, etc.
    Other uses:
  • Together with wireless electronic scale, the crane can measure the cargo.
  • Together with lifting electromagnet, the crane can unload scrap steel.
  • Together with multiple-arm sling, container spreader etc, the crane can unload special goods.




Dear sir,
               Detailed informatin of parameters and conditions will be appreciated so that we can recommend the most suitable crane for you. Thank you!



Parameters Form of Fixed Slewing Crane

Parameters of crane

Model

□Wirerope-luffing    □Rack-luffing

 Type of Cargo

□Bulks    □Packed cargo

Cargo



Bulk density



Installation Location

□On the bank    □Barge \ Pontoon

Max capacity

     t@     m

Metering mode

□Electric scale □Weighbridge □Weighting hopper

Work range



Hoisting speed



Length of boom



Luffing speed



Work efficiency



Slewing speed



Conditions of wharf

Ship’s tonnage







Ship size

Molded Length



Hatch dimension

Length



Molded Breadth



Width



Molded Depth



Depth



Height of water

Flood Level







 Low water level







Normal water level







Elevation of wharf surface







 Other information needs to explain:
