YBQ Hydraulic Crane（YBQ Hose handling crane）

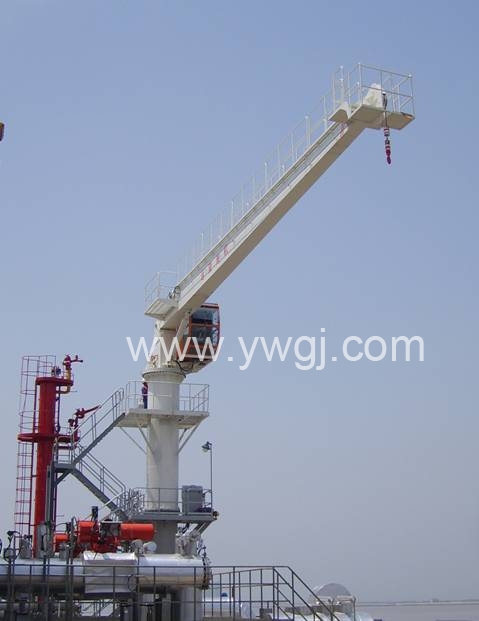

Hydraulic crane (Hose handling crane)

 Specification:

  • Lifting capacity: 0.5t~10t
  • The crane adopts the hydraulic drive and cylinder-luffing system to realize the stepless speed regulating. It can also be operated electro-hydraulicly or manually. The swing is 360 degrees.
  • The crane has the advantages of compact structure, smoothness and convenient operation, safety and reliability.
  • According to customers’ requirement, we can design the remote operation version with 100m distance. The explosion class of the crane is ExedIIBT4, while the protection is IP56. It is designed specially for certain customers in order to meet practical requirement.
  • The crane apply to the oil wharf \ liquid chemical wharf for hoisting hoses or other dangerous goods. It is also designed specially for various special ships, such as oil tanker, chemical tanker, LPG carrier, LNG carrier etc. to hoist hoses, materials, supplies, etc.



 Dear sir,
               Detailed informatin of parameters and conditions will be appreciated so that we can recommend the most suitable crane for you. Thank you!



Parameters Form of Hose Handling Crane



Parameters

Code

Unit

Data

Rated Capacity

Q

t



Working radius

Max

Rmax

M



Min

Rmin

M



Hoisting speed

V

m/min



Slewing speed

N

r/min



Luffing time

T

S



Slewing angle







Hoisting height

Above the base



m



Below the base



m



 Other information needs to explain:
