主要技术规格（软管起重机）
|
型号 |
安全负载 (t) |
工作半径 (m) |
起升速度(m/min) |
空载回转速度(r/min) |
变幅时间(s) |
起升高度(m) |
回转角度(°) |
系统工作压力(MPa) |
配置功率(KW) |
|
YBQ0.5 |
0.5 |
2.6~18 |
0~15 |
0~1.0 |
≤50 |
-5~12 |
360 |
20 |
5.5 |
|
YBQ1 |
1.0 |
4.5~20 |
0~10 |
0~0.6 |
≤80 |
-5~20 |
360 |
20 |
11.0 |
|
YBQ2 |
2.0 |
4.5~20 |
0~10 |
0~0.6 |
≤80 |
-5~22 |
360 |
20 |
15.0 |
|
YBQ3 |
3.0 |
5.5~20 |
0~10 |
0~0.6 |
≤80 |
-5~22 |
360 |
20 |
22.0 |
|
YBQ5 |
5.0 |
5.8~20 |
0~8 |
0~0.5 |
≤90 |
-5~22 |
360 |
20 |
30.0 |
|
YBQ7 |
7.0 |
6~20 |
0~8 |
0~0.5 |
≤90 |
-5~22 |
360 |
20 |
30.0 |
|
YBQ8 |
8.0 |
6~23 |
0~8 |
0~0.6 |
≤90 |
-5~20 |
360 |
20 |
30.0 |
说明：此表参数为常规配置，根据用户实际工况，可重新设计。
技术说明：
Specification:
● 起重量：0.5t~10t
Lifting capacity: 0.5t~10t
● 该机型采用全液压驱动和油缸变幅，可无级调速。可采用电液控制或手动控制，可360度全回转。
The crane adopts the hydraulic drive and cylinder-luffing system to realize the stepless speed regulating. It can also be operated electro-hydraulicly or manually. The swing is 360 degrees.
● 该机型有结构紧凑，运转平稳，使用操作方便，安全可靠等特点。
The crane has the advantages of compact structure, smoothness and convenient operation, safety and reliability.
● 也可据用户要求配置为遥控操作，遥控距离为100米。整机防爆等级为ExedⅡBT4，防护等级IP56。根据用户要求设计，使该机符合实际工况。
According to customers’ requirement, we can design the remote operation version with 100m distance. The explosion class of the crane is ExedIIBT4, while the protection is IP56. It is designed specially for certain customers in order to meet practical requirement.

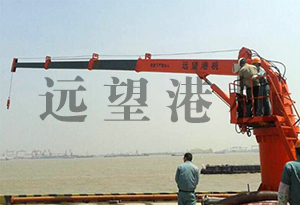

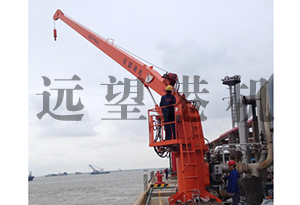

● 该机型可安装在油码头、化工码头等，用于起吊液体软管或其他危险品。也可安装在各种油轮、化学品船、LPG（液化石油气）/LNG（液化天然气）等特殊船舶上，可用于起吊软管、货物、补给品等各类零星物品。
The crane apply to the oil wharf \ liquid chemical wharf for hoisting hoses or other dangerous goods. It is also designed specially for various special ships, such as oil tanker, chemical tanker, LPG carrier, LNG carrier etc. to hoist hoses, materials, supplies, etc.
